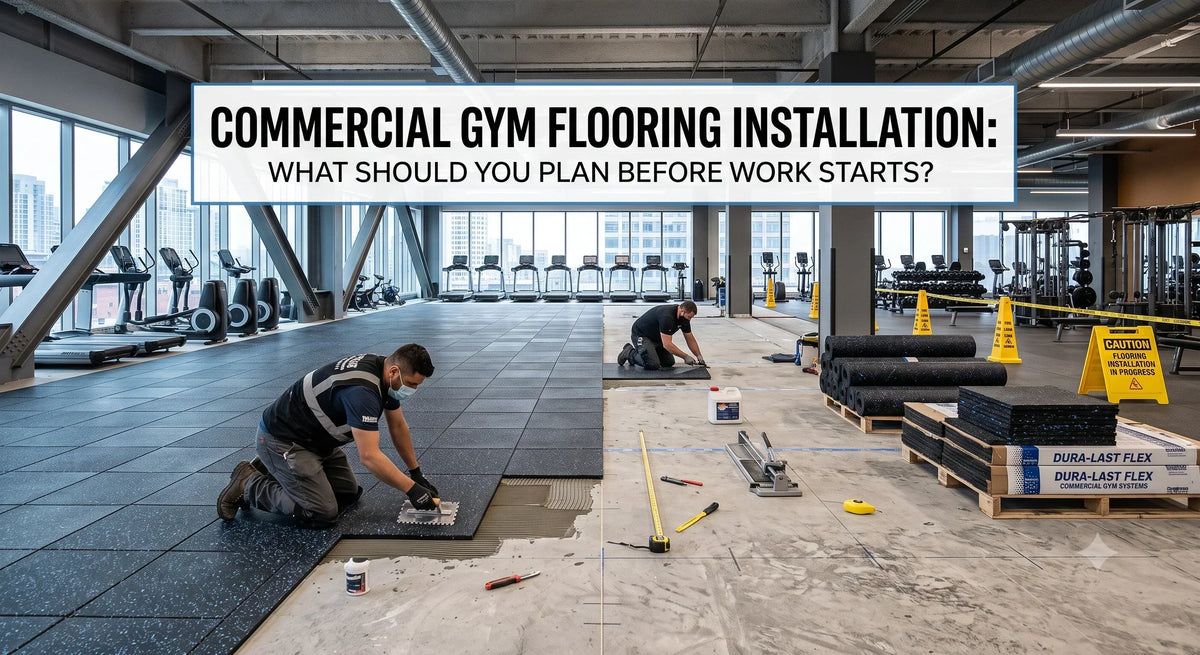

Commercial Gym Flooring Installation: What Should You Plan Before Work Starts?

A hotel manager in Galway recently placed an order for rubber gym flooring based on a quick tape measure across the room. The tiles arrived on schedule, the installation team arrived three days later, and within an hour the project stalled. Moisture readings from the concrete slab exceeded the adhesive manufacturer's limits. One doorway would no longer close over the new floor height. The weight-training corner needed thicker impact flooring than the cardio zone, but the same 15mm tiles had been ordered for the entire room. Fixed cable machines blocked a quarter of the floor area, and nobody had arranged to move them.

This scenario plays out more often than it should. Commercial gym flooring installation is not simply a matter of covering a concrete slab with rubber tiles. Proper planning should address the activity in each gym zone, the existing subfloor, moisture conditions, product format, installation method, site access, equipment layout and project timing. This guide explains what commercial gym owners, hotel managers, school facilities teams, contractors and architects should consider before any flooring work begins.

Quick Answer: What Should You Plan Before Installing Commercial Gym Flooring?

Before rubber flooring arrives on site, work through these steps:

1. Define the gym's training zones and the flooring requirements for each area.

2. Measure the full room accurately, including alcoves, pillars and doorways.

3. Inspect the existing subfloor type and condition.

4. Check moisture levels and identify any unacceptable height differences.

5. Select interlocking tiles, square-edged tiles, rolls or specialist impact flooring.

6. Confirm the appropriate flooring thickness and construction for each zone.

7. Choose a loose-laid, taped or fully bonded installation method.

8. Plan doorways, edge ramps and transition strips.

9. Coordinate flooring completion with equipment delivery and positioning.

10. Arrange delivery access, material storage and site conditions.

11. Allow adequate time for installation and adhesive curing where required.

12. Complete a final inspection before reopening the gym.

The exact process depends on the selected product, subfloor condition and manufacturer's requirements. Skipping steps early in the project often creates delays and additional costs later.

Planning a Commercial Gym Flooring Project?

Send your room dimensions, photographs, equipment layout, or floor plan for help estimating suitable flooring formats, quantities, gym mat sizing, and project requirements.

Request a Gym Flooring Quote | Upload Your Floor Plan | Call Our Matting Team

Start by Dividing the Gym into Training Zones

A commercial gym rarely needs identical flooring throughout. Different activities place different demands on the floor surface, and planning each zone separately avoids over-specifying expensive flooring where it is not required or under-specifying where it is.

Cardio areas

Treadmills, exercise bikes, cross trainers and rowing machines create sustained vibration rather than sudden impacts. Flooring in cardio zones should provide a stable base for machine feet, reduce transmitted vibration to the floor below, and allow easy cleaning around and beneath equipment. Thinner rubber flooring may be acceptable here compared to free-weight zones.

Resistance-machine areas

Selectorised machines and cable stations apply concentrated static loads through their feet. The flooring must remain stable under these loads without compressing excessively. Where machines are bolted to the floor, the fixing method should be planned before installation.

Free-weight areas

Dumbbells and barbells create repeated moderate impacts. Flooring should extend beyond the immediate equipment footprint to protect the floor when weights are set down. Standard 15mm to 20mm rubber tiles often suit lighter free-weight zones.

Power-rack and lifting zones

Squat racks, deadlift platforms and Olympic lifting areas experience the heaviest impacts. Dropped barbells loaded with bumper plates can strike the floor with considerable force. Specialist impact flooring, thicker rubber, or multi-layer platform systems may be required in these zones.

Studios and rehabilitation areas

Group exercise studios, yoga spaces and physiotherapy areas prioritise comfort and ease of cleaning over impact resistance. Thinner, smoother rubber or resilient flooring may be more appropriate than dense, heavily textured tiles.

A labelled floor plan showing each zone helps when requesting quotations and ensures the right flooring is specified for each area.

Complete a Site Survey Before Ordering Flooring

Accurate measurements and site information prevent costly surprises during installation. A site survey should record:

• Room length, width and total floor area

• Pillar positions and sizes

• Recesses, alcoves and irregular wall lines

• Door openings, swing directions and threshold heights

• Existing floor drains and inspection covers

• Expansion joints in the concrete slab

• Changes in floor level across the room

• Skirting boards and their removal or retention

• Existing floor coverings

• Stair access, goods lifts and loading bays

• Fixed equipment that cannot be moved

• Floor-mounted electrical and data outlets

• Underfloor heating systems

• Any visible damp, staining or damaged areas

The final quantity calculation and installation quotation should not be confirmed until an accurate site survey is complete.

Inspect the Existing Subfloor

The subfloor condition determines how much preparation is needed and whether certain installation methods are suitable.

Concrete

Most commercial gyms in Ireland are built on concrete slabs. Check for:

• Cracks requiring repair

• Dusty or friable surfaces needing treatment

• Grease, oil or chemical contamination

• Old paint, adhesive residue or coatings

• High and low spots exceeding acceptable tolerances

• Moisture presence or rising damp

Concrete that appears sound may still require grinding, filling or priming before flooring installation.

Ceramic or porcelain tiles

Some gym conversions involve installing rubber over existing tiled floors. Check for:

• Loose or hollow-sounding tiles

• Cracked or chipped tiles

• Grout lines creating an uneven surface

• Movement or instability in the tile bed

Some rubber flooring products can be installed over stable, level tiles. Others require tile removal.

Timber floors

Suspended timber floors in older buildings or upper-floor gyms present particular considerations:

• Flexing or bounce under load

• Loose or damaged boards

• Moisture from below or above

• Movement that may affect bonded flooring

• Load capacity for heavy gym equipment

Professional structural assessment may be necessary before installing gym flooring on timber.

Vinyl or resilient flooring

Existing vinyl may be retained if it is fully bonded, in good condition and compatible with the new flooring system. Check for:

• Lifting edges or bubbles

• Adhesive failure

• Surface damage or contamination

Some flooring manufacturers prohibit installation over certain existing coverings.

Carpet

Carpet is generally not a stable base for permanent commercial gym flooring unless the specific flooring system is approved for this application. Carpet can compress unevenly, trap moisture and allow movement beneath rigid tiles.

The selected flooring should only be installed over a subfloor that meets the flooring manufacturer's requirements.

Plan Moisture Testing and Damp Management

Concrete that looks and feels dry may still contain moisture levels that interfere with adhesive bonding or become trapped beneath the flooring.

Moisture assessment is particularly important for:

• Newly poured concrete slabs that have not fully cured

• Ground-floor slabs without effective damp-proof membranes

• Basement or below-grade installations

• Areas with previous water damage or leaks

• Gyms where wet cleaning is common

Testing methods include surface hygrometers, calcium chloride tests and relative humidity probes. The appropriate method depends on the flooring system and adhesive being used.

Moisture readings should be assessed against the requirements of the selected flooring and adhesive. If readings are outside the permitted range, the cause should be investigated before installation begins. Solutions may include additional drying time, surface damp-proof membranes or alternative installation methods.

Rubber flooring resists surface water during cleaning, but this does not mean moisture cannot become trapped between the flooring and subfloor if conditions are unsuitable at installation.

Prepare the Floor Before Installation

A typical preparation sequence includes:

1. Remove loose floor coverings, debris and temporary materials.

2. Remove incompatible adhesive residues, coatings or contaminants where required.

3. Repair cracks, holes and damaged areas with appropriate compounds.

4. Grind or level unacceptable high spots and fill low areas.

5. Remove dust, grease and surface contamination.

6. Complete moisture testing and assessment.

7. Apply approved primer or surface treatment where specified.

8. Allow repairs and treatments to cure fully.

9. Reinspect the floor before flooring installation begins.

10. Follow the flooring manufacturer's specific preparation instructions.

Subfloor preparation can form a significant part of the total project cost, particularly in older buildings or conversions.

New gym flooring should not be used to hide an unstable, contaminated or badly damaged subfloor.

Rubber Tiles, Rolls or Individual Mats

Commercial gym flooring is available in several formats, each with different installation characteristics.

Interlocking rubber tiles

Interlocking tiles connect via puzzle-style edges and can often be loose-laid in smaller rooms where perimeter restraint prevents movement. They are easier to handle than rolls, allow damaged sections to be replaced individually, and suit DIY installation in some situations.

Considerations include visible joins, potential edge movement in larger rooms, and the need for careful perimeter cutting.

Square-edged rubber tiles

Square-edged tiles create a cleaner, more continuous appearance when properly aligned. They typically require adhesive or double-sided tape to prevent movement and gaps. Replacing damaged sections may be more involved than with interlocking tiles.

Rubber flooring rolls

Rolls minimise visible seams across large areas and are common in commercial gym installations. However, they are heavy, require careful handling with multiple installers, and usually need adhesive bonding.

Rolls must be allowed to relax and acclimatise before installation according to manufacturer guidelines. Seam alignment and cutting require precision.

Individual equipment mats

Standalone mats beneath treadmills, bikes or individual machines provide localised protection without full floor coverage. They suit small hotel gyms or home installations but leave exposed edges and may shift during use.

Specialist impact systems

Weightlifting zones may require multi-layer systems combining dense rubber tiles, shock-absorbing underlays and lifting platforms. These products have specific installation requirements that vary by manufacturer.

Browse gym mats to compare tile and roll options suitable for commercial installations.

Loose-Laid, Taped or Fully Bonded Installation

The installation method affects project cost, installation time, future removal and long-term performance.

Loose-laid flooring

Loose laying may be suitable for heavy interlocking tiles in smaller rooms where walls, skirting or perimeter trims prevent movement. It allows easier future removal and suits temporary installations.

Potential concerns include gaps opening between tiles, edge lifting, and movement when heavy equipment is dragged across the floor. Not all products are designed for loose installation.

Taped installation

Double-sided tape around perimeters and seams provides intermediate stabilisation without full adhesive coverage. This approach suits some tile installations and allows easier removal than bonded flooring.

Tape must be compatible with both the flooring and subfloor, and may not provide adequate restraint in high-traffic commercial environments.

Fully bonded installation

Bonded installation using manufacturer-approved adhesive is common for large commercial areas, rubber rolls and situations requiring maximum stability. Adhesive prevents movement, closes seams and provides long-term performance.

Considerations include adhesive open time, curing requirements before loading, and the difficulty of future removal.

The exact installation method must follow the selected manufacturer's instructions. Do not assume that all thick rubber tiles can be installed loose simply because of their weight.

Plan the Flooring Layout, Seams and Cuts

Professional installers establish a layout plan before placing the first tile or unrolling the first metre.

Key layout considerations include:

• Establishing straight reference lines in rooms where walls are not perfectly square

• Avoiding narrow filler strips at visible entrances or high-traffic routes

• Positioning seams away from doorways and high-impact zones

• Accounting for pillars, drains and fixed obstacles

• Managing different product batches to avoid visible colour variation

• Planning perimeter cuts and material quantities

• Defining boundaries between different flooring zones

• Maintaining access routes during phased installation

A 12-metre by 8-metre gym containing two pillars, a central rack and a glazed entrance may need a different starting point from a simple rectangular room.

Cutting allowances vary depending on room shape, tile or roll dimensions, flooring pattern and the number of obstacles. Complex layouts generate more waste than simple rectangles.

Doorways, Edge Ramps and Accessible Routes

Flooring thickness affects door clearance. A 20mm rubber floor installed over an existing surface may prevent doors from opening. Fire exits, automatic doors and accessible routes require particular attention.

Plan for:

• Measuring existing door clearance before specifying flooring thickness

• Adjusting or rehinging doors where necessary

• Bevelled edge ramps where flooring meets lower adjacent surfaces

• Transition strips between different flooring types or zones

• Wheelchair access, trolley routes and cleaning machine clearance

• Trip hazards at level changes

Edge and doorway details should be planned before the flooring is ordered rather than improvised after installation.

Where building regulations or accessibility standards apply, professional review of transition details may be necessary.

Coordinate Flooring with Equipment Installation

Sequencing flooring and equipment installation incorrectly creates problems that are expensive to fix.

A typical sequence:

1. Complete building work, plastering and wet trades.

2. Prepare and test the subfloor.

3. Install the flooring.

4. Allow bonded flooring to cure before loading.

5. Protect the completed surface during remaining works.

6. Deliver gym equipment to site.

7. Position machines carefully without dragging.

8. Anchor racks and fixed equipment where required.

9. Complete a final inspection.

Dragging heavy machines, using pallet trucks or dropping equipment onto uncured adhesive, damages flooring. Plan equipment access routes and protection measures.

The building structure, rather than the rubber flooring, must support the weight of the equipment. Upper-floor gyms with heavy racks, plate storage or concentrated machine loads may require structural assessment before equipment positioning is finalised.

Plan for Noise and Vibration

Rubber gym flooring can reduce impact noise from dropped weights and vibration from cardio machines, but it does not completely soundproof a building.

Noise concerns are common in:

• Upper-floor gyms above offices, retail or residential spaces

• Hotel fitness centres near guest rooms

• Apartment building gyms

• Gyms sharing walls with other businesses

Acoustic performance depends on material density, flooring thickness, product construction, any underlay used, subfloor type, building structure and the energy of weight drops. A 20mm rubber tile will not prevent a 150kg barbell drop from transmitting noise and vibration through a suspended floor.

Where acoustic performance is critical, specialist acoustic underlays, thicker impact systems or dedicated lifting platforms may be required. Building acoustic assessment is separate from flooring specification.

Delivery and Site Logistics

Commercial flooring arrives on pallets. Rubber rolls can weigh several hundred kilograms each.

Plan for:

• Adequate loading access and parking for delivery vehicles

• Forklift or pallet truck availability on site

• Lift capacity for upper-floor deliveries

• Stairwell dimensions if lifts are unavailable

• Dry, clean storage space before installation

• Product acclimatisation in the installation environment

• Packaging and waste removal

• Scheduling around business operating hours

In Dublin city centre, parking restrictions and pedestrianised zones may affect delivery timing.

Product storage and acclimatisation requirements must follow the selected manufacturer's instructions. Some products require 24 to 48 hours to reach room temperature; others may need longer.

How Long Does Commercial Gym Flooring Installation Take?

Installation duration depends on multiple factors and cannot be reduced to a single figure:

A straightforward installation of interlocking tiles in a prepared rectangular room may be completed in a day. A large gym with subfloor repairs, bonded roll installation and multiple zones may require a week or more.

Bonded flooring should not be walked on, loaded with equipment or wet-cleaned until the appropriate curing period has passed.

What Affects Gym Flooring Installation Cost?

Commercial quotations vary widely depending on what is included.

Cost factors include:

• Flooring material type, thickness and quantity

• Delivery distance and access difficulty

• Removal and disposal of existing floor coverings

• Moisture testing and damp-proof treatments

• Subfloor repairs, grinding and levelling

• Primer and surface preparation products

• Adhesive type and coverage

• Labour for installation and cutting

• Edge ramps, transition strips and finishing

• Equipment removal and repositioning

• Out-of-hours or weekend working

• VAT

Two quotations may appear very different because one includes subfloor preparation, adhesive, edge finishing, and waste removal, while the other covers only the labour required to lay the flooring.

Request itemised quotations and confirm exactly what is included before comparing prices.

Send Your Floor Plan for a Project Quotation

DIY Installation vs Professional Installation

Both approaches have valid applications depending on the project.

DIY installation may be considered for:

• Small rooms with simple rectangular layouts

• Loose-laid interlocking tiles designed for DIY fitting

• Dry, level and properly prepared subfloors

• Limited cutting requirements

• Projects without fixed equipment complications

Professional installation may be more appropriate for:

• Large commercial gyms and fitness centres

• Heavy rubber flooring rolls requiring multiple handlers

• Fully bonded installations with adhesive

• Wet, uneven or damaged subfloors needing preparation

• Multiple training zones with different flooring types

• Complex layouts with pillars, drains and obstacles

• Edge ramps, thresholds and transition details

• Tight project deadlines with operating facilities

Warranties and performance guarantees may depend on following product instructions and using approved preparation materials and adhesives. Check requirements before deciding on the installation approach.

Common Commercial Gym Flooring Installation Mistakes

1. Ordering flooring before surveying the site — quantities, product suitability and installation method cannot be confirmed without accurate site information.

2. Ignoring moisture — trapped damp causes adhesive failure, odours and flooring damage over time.

3. Installing over dust or grease — contaminated subfloors prevent proper adhesive bonding.

4. Assuming every rubber product installs the same way — installation methods vary by product; check manufacturer instructions.

5. Using one flooring type in every zone — free-weight areas and cardio zones have different requirements.

6. Forgetting door clearance — flooring thickness may prevent doors opening without adjustment.

7. Ignoring edge transitions — unfinished edges create trip hazards and look unprofessional.

8. Starting without a layout plan — poor planning creates narrow perimeter strips and misaligned seams.

9. Using an incompatible adhesive — wrong adhesives cause bonding failure; use manufacturer-approved products.

10. Dragging equipment over new flooring — heavy equipment damages surfaces; lift and carry instead.

11. Loading bonded flooring too early — adhesive requires curing time before weight is applied.

12. Underestimating cutting requirements — complex rooms with obstacles generate significant waste.

13. Failing to order spare tiles — replacement tiles may be unavailable later due to batch differences.

14. Not recording product information — retain batch numbers and product references for future repairs.

15. Cleaning before adhesive has cured — wet cleaning uncured adhesive compromises the bond.

Final Inspection Before the Gym Reopens

Complete a thorough inspection before equipment returns and the facility reopens:

• Joins are aligned and closed with no visible gaps

• Edges are secure with no lifting or curling

• Transition strips and ramps are stable

• All doors open and close properly

• Fire exits and accessible routes remain clear

• Equipment bases sit level on the flooring

• Adhesive has cured per manufacturer requirements

• Flooring is clean and free of installation debris

• Any damaged sections have been replaced

• Spare flooring is stored for future repairs

• Product details, batch numbers and installation records are retained

• Cleaning instructions are available for maintenance staff

Photograph the completed flooring before equipment is returned to document the installation condition.

Cleaning and Maintenance After Installation

Establish maintenance procedures from day one:

• Allow bonded flooring to cure fully before wet cleaning

• Remove dust and loose debris with soft brooms or vacuum cleaners

• Use cleaning products approved for the specific flooring type

• Avoid excessive water pooling on the surface

• Inspect joins and edges regularly for movement or lifting

• Move equipment carefully without dragging

• Replace damaged tiles promptly to prevent adjacent damage

• Keep maintenance records including cleaning schedules

• Store spare tiles in similar conditions to the installed flooring

Cleaning methods and product recommendations vary by flooring type. Follow product-specific guidance rather than generic rubber cleaning advice.

Commercial Gym Flooring Installation Checklist

Before ordering

• Measure the full floor area accurately

• Define training zones and flooring requirements for each

• Inspect the existing subfloor type and condition

• Check moisture levels

• Select appropriate material, thickness and format

• Confirm the installation method

• Plan edge ramps and transitions

• Calculate quantities including cutting allowance

Before installation

• Clear the installation area completely

• Complete all subfloor preparation and repairs

• Confirm delivery access and material storage

• Store materials in the installation environment

• Approve the layout plan

• Coordinate equipment delivery timing

After installation

• Allow adhesive curing where applicable

• Inspect joins, edges and transitions

• Protect the flooring during remaining works

• Return equipment carefully without dragging

• Record product information and batch numbers

• Establish cleaning and maintenance procedures

This checklist could be offered as a downloadable PDF for project managers and facilities teams.

Questions to Ask a Gym Flooring Supplier or Installer

Use these questions when comparing quotations:

• Is this flooring suitable for each of our training zones?

• What subfloor condition is required for installation?

• Is moisture testing included in the quotation?

• Is floor preparation included or priced separately?

• Will the flooring be loose-laid, taped or fully bonded?

• Which adhesive, primer or fixing products are required?

• Are edge ramps and transition strips included?

• Is delivery included, and are there access restrictions?

• Who will move existing equipment?

• How long must the floor cure before loading?

• When can equipment be returned to the gym?

• Is VAT included in the quoted price?

• Are spare tiles supplied for future repairs?

• What technical documentation and warranties are provided?

• What cleaning method is recommended?

• What is specifically excluded from this quotation?

Frequently Asked Questions

How is commercial gym flooring installed?

Installation methods vary by product. Interlocking tiles may be loose-laid with perimeter restraint. Square-edged tiles often require adhesive or tape. Rubber rolls typically need full adhesive bonding. The exact method should follow the manufacturer's instructions for the selected product and subfloor type.

Can rubber gym flooring be installed over concrete?

Yes, concrete is the most common subfloor for commercial gym flooring. However, the concrete must be clean, dry, level and free from contamination. Moisture testing, crack repair and surface preparation may be required before installation.

Can gym flooring be installed over ceramic tiles?

Some rubber flooring products can be installed over stable, well-bonded ceramic tiles with level surfaces. Loose, cracked or uneven tiles should be removed or repaired first. Check manufacturer compatibility requirements before proceeding.

Should rubber gym flooring be glued down?

Bonding depends on the product, room size and usage. Heavy interlocking tiles in small rooms may be suitable for loose laying. Rolls, large areas and high-traffic commercial gyms typically require adhesive bonding for stability and long-term performance.

Are rubber tiles or rolls easier to install?

Tiles are lighter and easier to handle, making them suitable for DIY installation in some situations. Rolls require multiple handlers, precise cutting and usually adhesive bonding, making professional installation more common for roll products.

Does a concrete floor need moisture testing?

Moisture assessment is recommended for commercial gym installations, particularly for bonded flooring. New concrete, ground-floor slabs and basements present higher moisture risk. Acceptable moisture levels depend on the specific flooring and adhesive being used.

How long does commercial gym flooring installation take?

Duration varies widely. A small room with prepared subfloor and interlocking tiles might be completed in a day. Large gyms with subfloor preparation, roll installation and multiple zones may require a week or more, including curing time.

How soon can equipment be placed on a new gym floor?

Loose-laid flooring can be loaded immediately. Bonded flooring requires curing time before loading, typically 24 to 72 hours depending on the adhesive, but manufacturer instructions should be followed. Equipment should be lifted into position, not dragged.

Can commercial gym flooring be installed over carpet?

Carpet is generally unsuitable as a base for permanent commercial gym flooring. It compresses unevenly, traps moisture and allows movement. Most manufacturers require carpet removal unless the specific flooring product is approved for this application.

How much does commercial gym flooring installation cost?

Costs vary based on flooring type, thickness, quantity, subfloor condition, preparation requirements, installation method and site access. Request itemised quotations and confirm whether preparation, adhesive, transitions, equipment moving and VAT are included.

Can rubber gym flooring reduce noise and vibration?

Rubber flooring can reduce impact noise and machine vibration to some degree, but it does not completely soundproof a building. Performance depends on material density, thickness and building structure. Upper-floor gyms may require specialist acoustic solutions.

Should a commercial gym use a professional installer?

Professional installation is advisable for large areas, roll products, bonded installations, complex layouts and operating facilities with tight deadlines. DIY installation may suit small rooms with interlocking tiles on prepared subfloors.

Conclusion: Plan the Installation Before Ordering

Successful commercial gym flooring installation depends on thorough planning before any materials arrive on site. Define your training zones and their specific requirements. Complete an accurate site survey covering measurements, obstacles and access. Inspect the existing subfloor for damage, contamination and moisture. Understand the differences between tiles, rolls and impact systems.

Choose the appropriate installation method for your product and situation. Plan doorways, transitions and edge details before ordering. Coordinate flooring completion with equipment delivery to protect your investment. Build realistic timelines that include preparation, installation and curing. Request detailed quotations that specify exactly what is included.

Proper planning reduces delays, controls costs and delivers flooring that performs reliably for years.
